Measuring Tips:
- Use a good measuring tape
- Always the measure the actual opening and not any existing door or framework
- Check that your garage has an available electrical point for the motor to connect to
- Measure in millimeters (mm) (x 100 = centimeters/cm)
If your opening does not adhere to the minimum sizes stated here, you may require a custom size door. Email us on: info@doorinthebox.co.za
Measure from side to side, in the centre of the opening.
Standard Single door width = 2440 mm (2,44m)
Standard Double door width = 4880 mm (4,88m)
Measure the distance between the floor and the top of the opening, in the centre of the opening.
Standard Height options = 2,150mm (2,15m) / 2400mm (2,4m) / 2570mm (2,57m)
Measure the width of both the left and right sides to ensure there is enough space for all the door fittings.
Minimum width required on each side = 140mm (14cm)

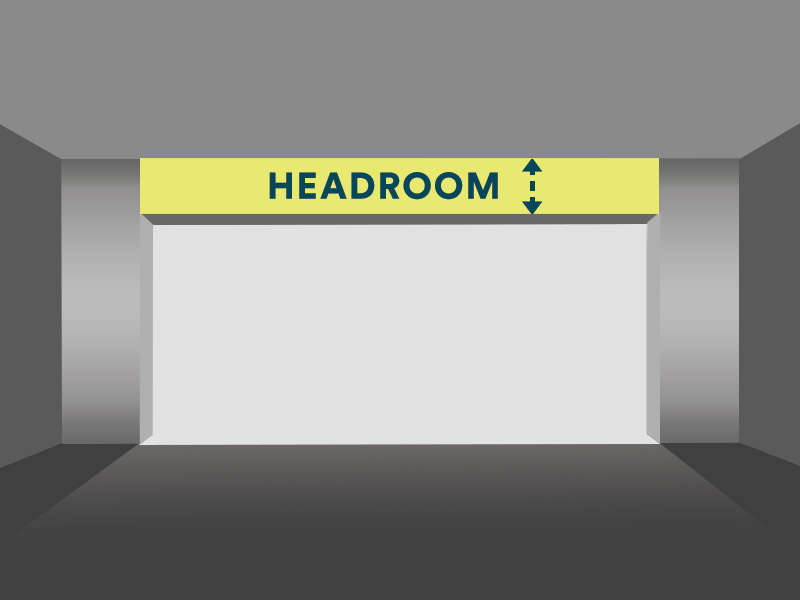

Measure the height of available head room above the opening. To ensure there is enough space for all the door fittings.
Minimum height required = 400 mm (40cm)
Measure how much depth you have in your garage from the opening to the rear of your garage area. To ensure there is enough space for the door to open properly.
Minimum depth required = 3500 mm (3,5m)
